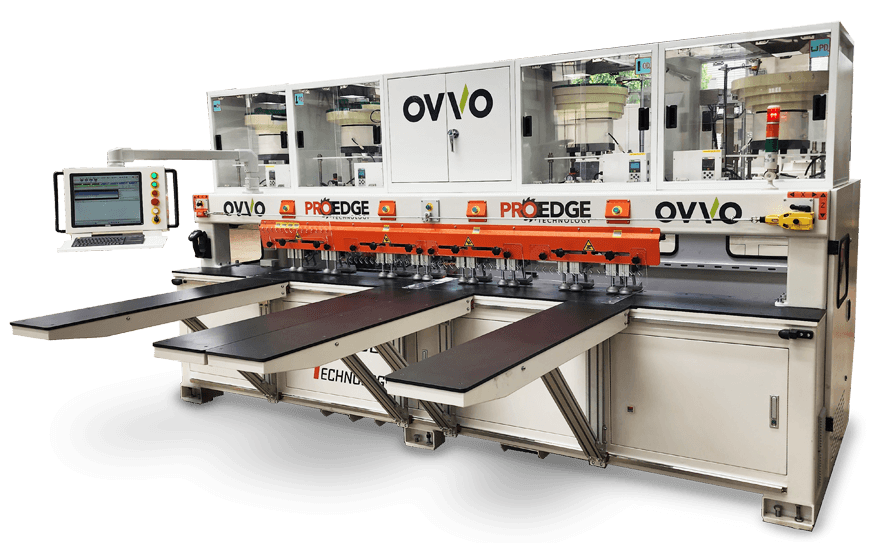

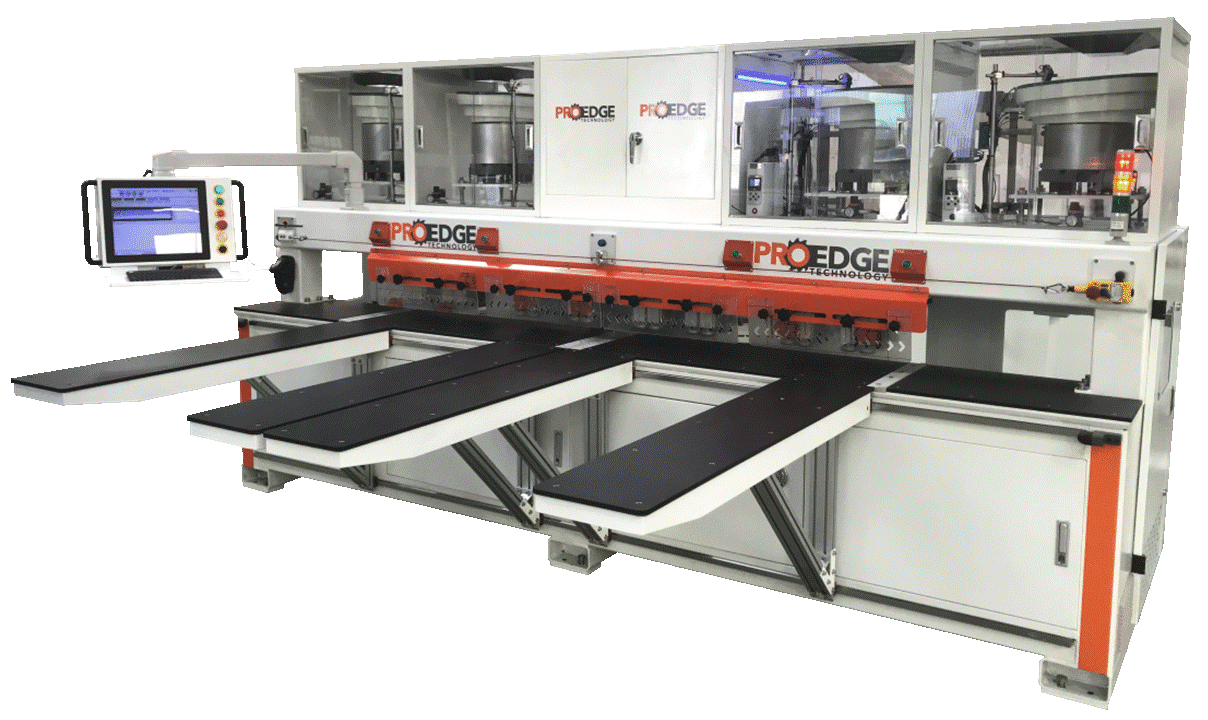

CNC OVVO INSERTION MACHINE

NEW PET 2440-OVVO CNC
MACHINING CENTER

Automated insertion of OVVO connectors

OVVO products are a range of cleverly engineered, award-winning connectors that make joining wood simpler. Pro Edge Technology formed a strategic partnership with OVVO to automated insertion of their products for the woodworking industry.

OVVO machine_shadowing_edited.png

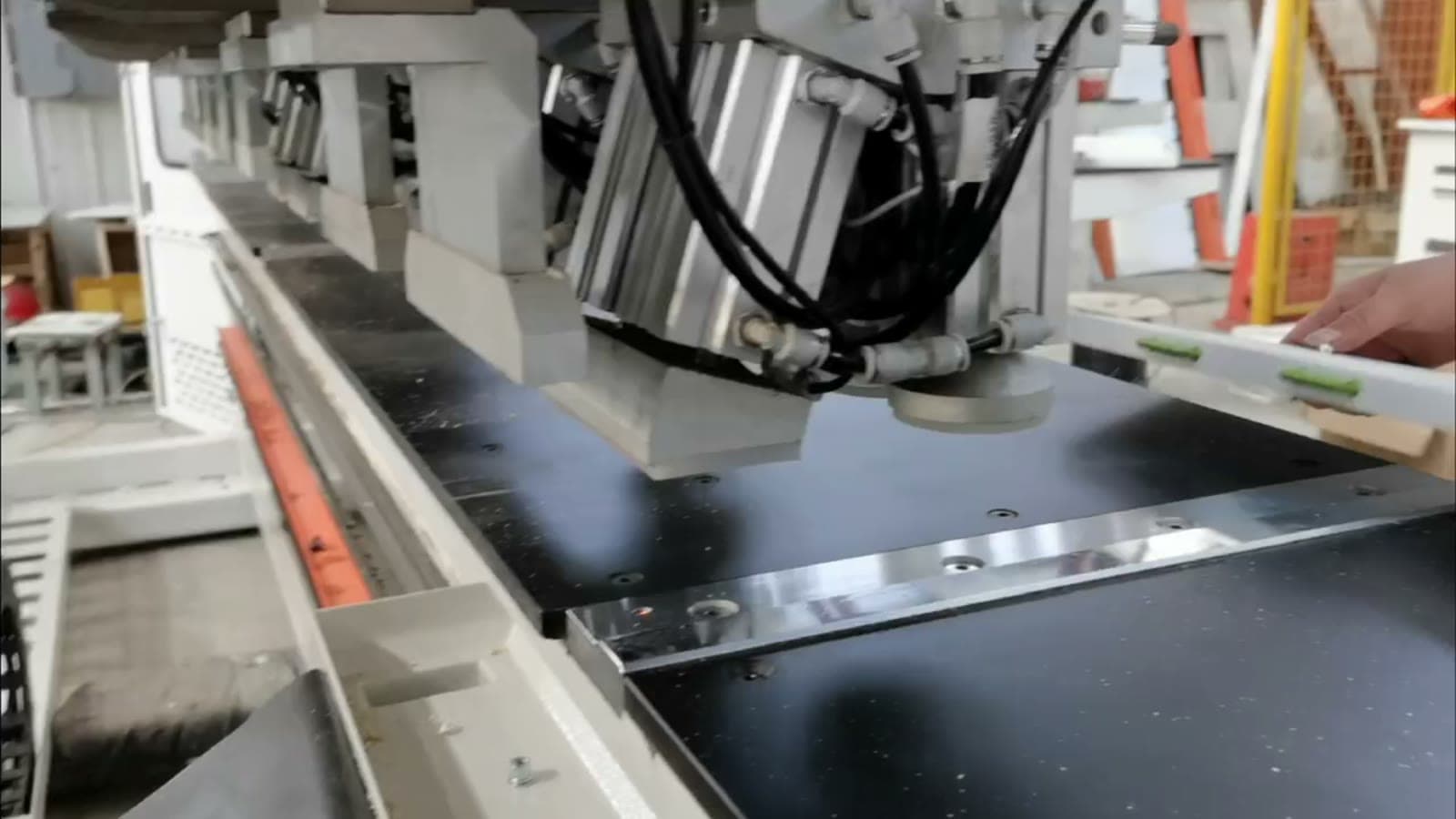

Watch our Video!

The OVVO CNC machining center offers VERTICAL ROUTING CAPABILITIES on the bottom surface of the panel which guarantees accuracy of +/- 0.05mm of router depth by making the bottom of the panel a TRUE zero reference point. This machine removes the need for expensive floating head aggregates or a live Z-axis laser measurement device on a flat table router.

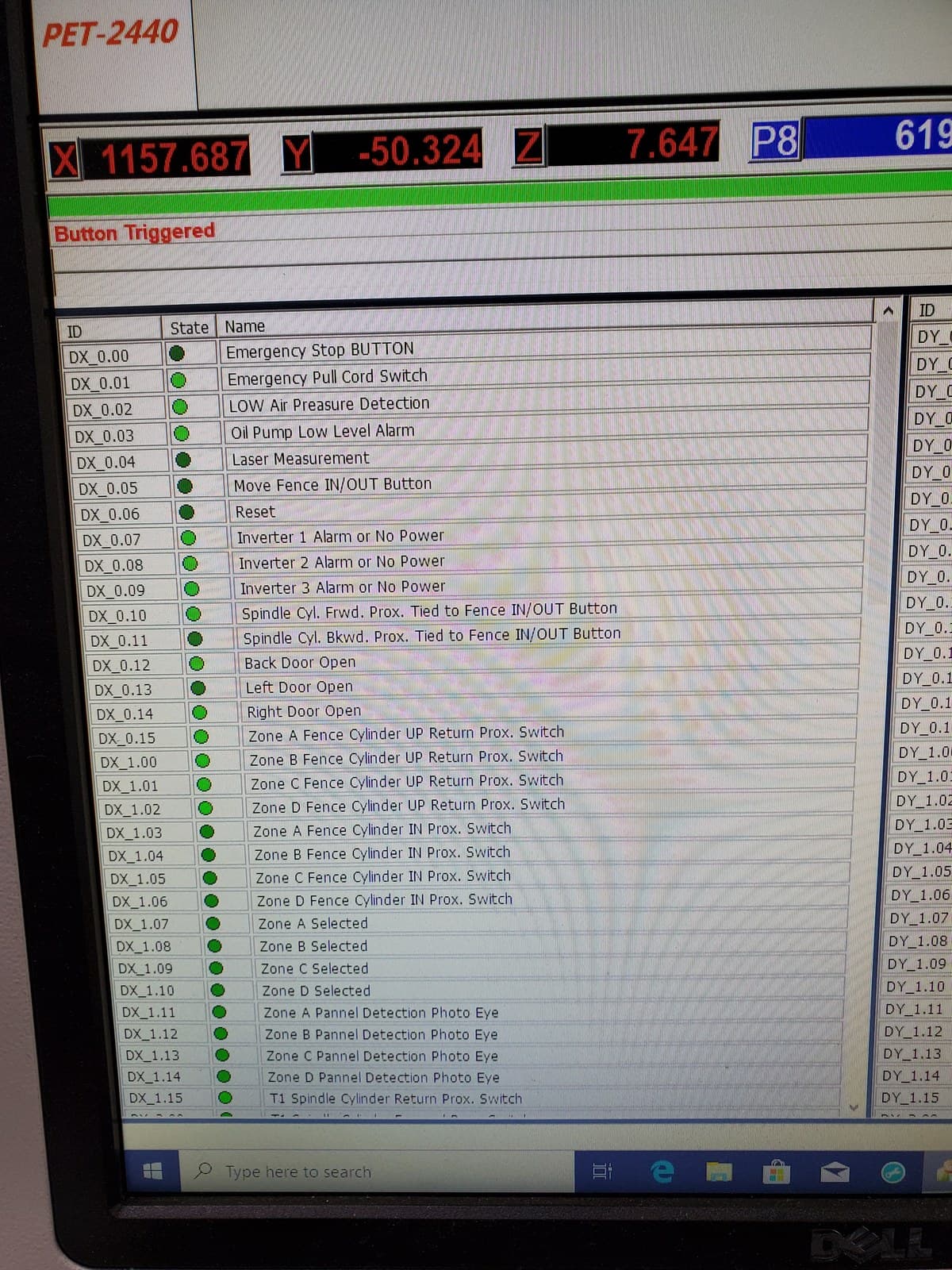

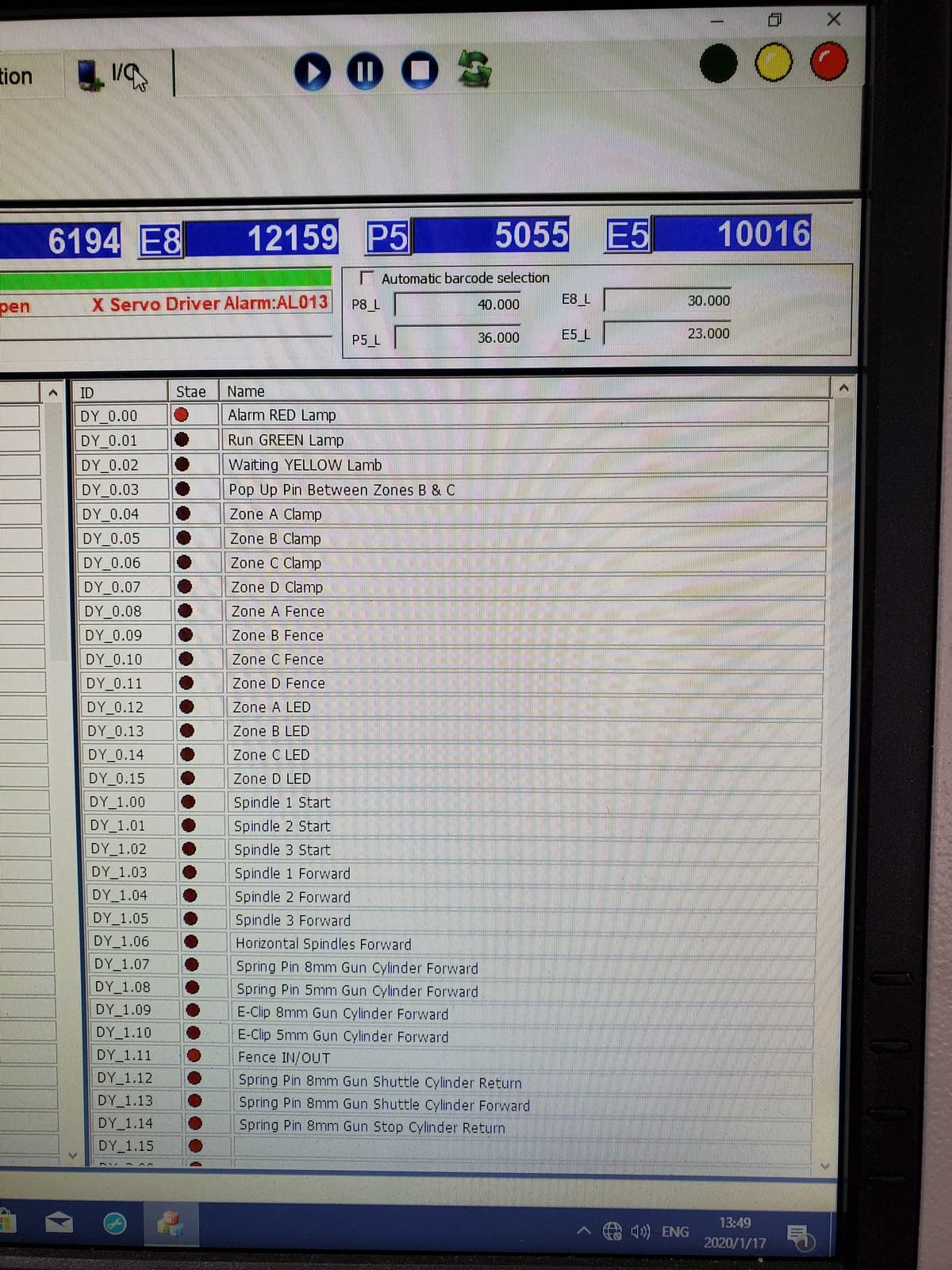

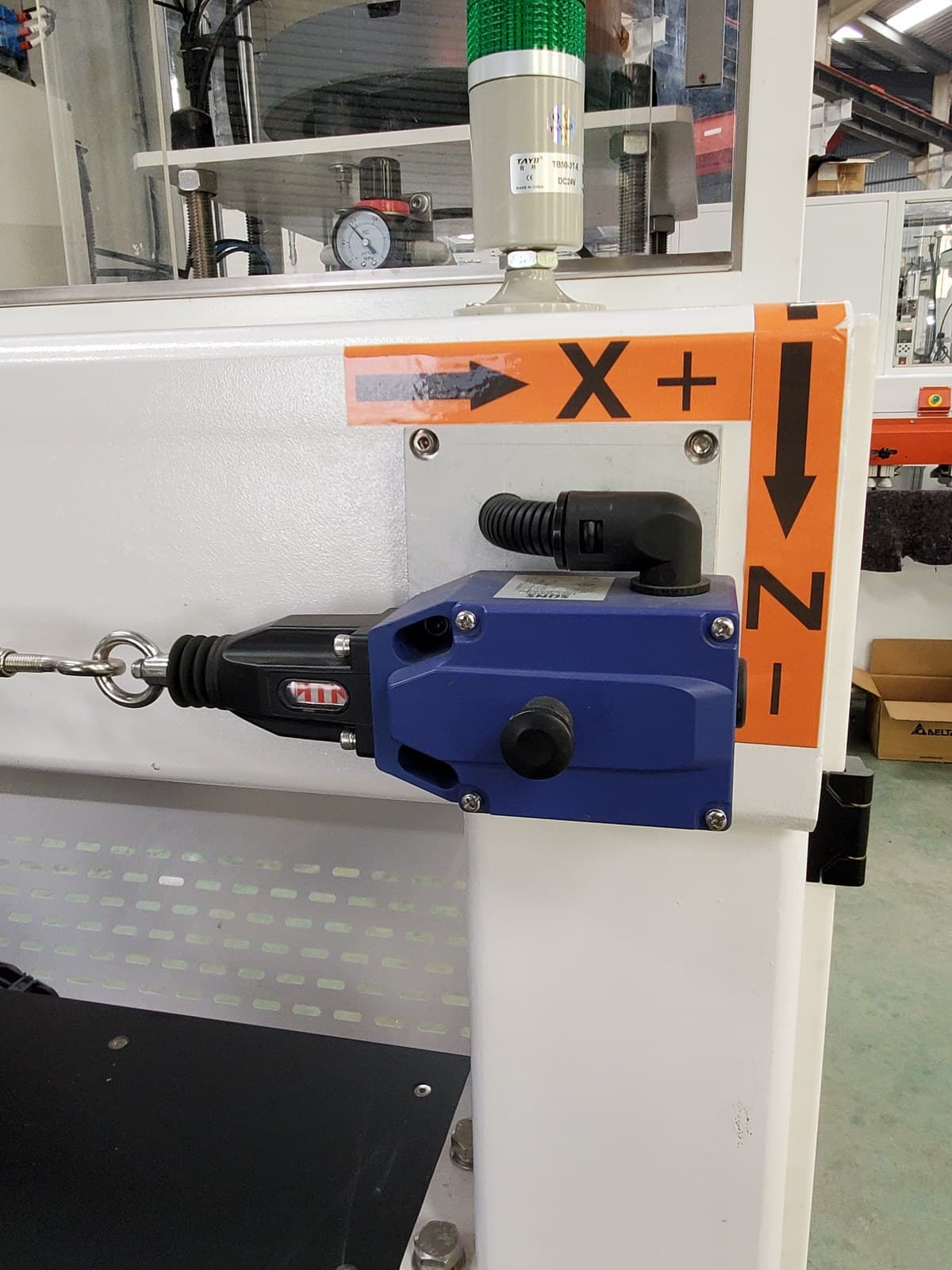

As with most other equipment from Pro Edge, the PET 2440-OVVO is equipped with SDT (Self Diagnostic Technology) in order to reduce the need and expense of service visits. While other equipment use "daisy-chains" of safety circuits which make it difficult for the operator to determine what caused a machine to stop, Pro Edge machines deliver specific, comprehensive information. this allows the operator to self-diagnose the issue, often eliminating the need for tech support or service calls.

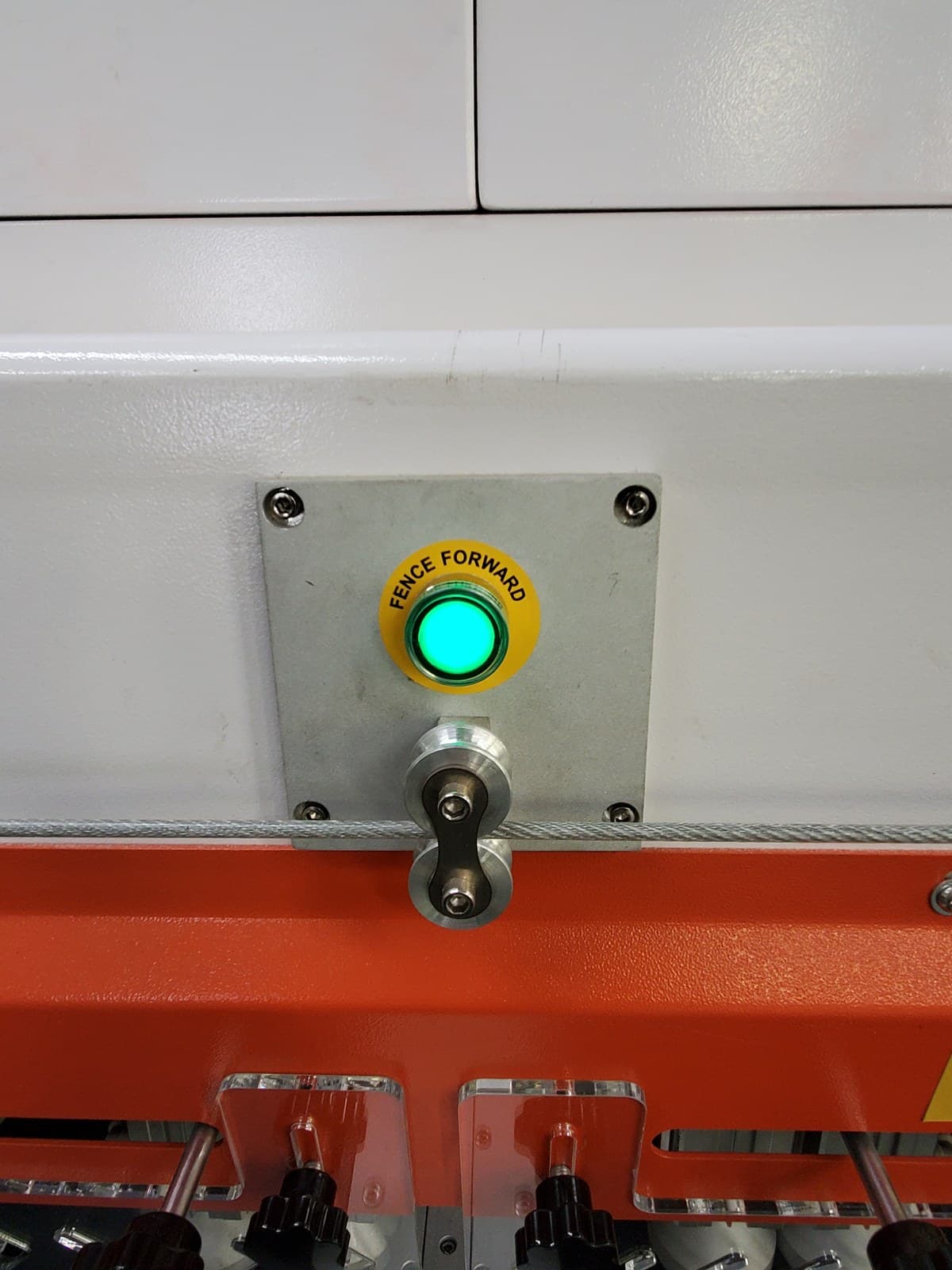

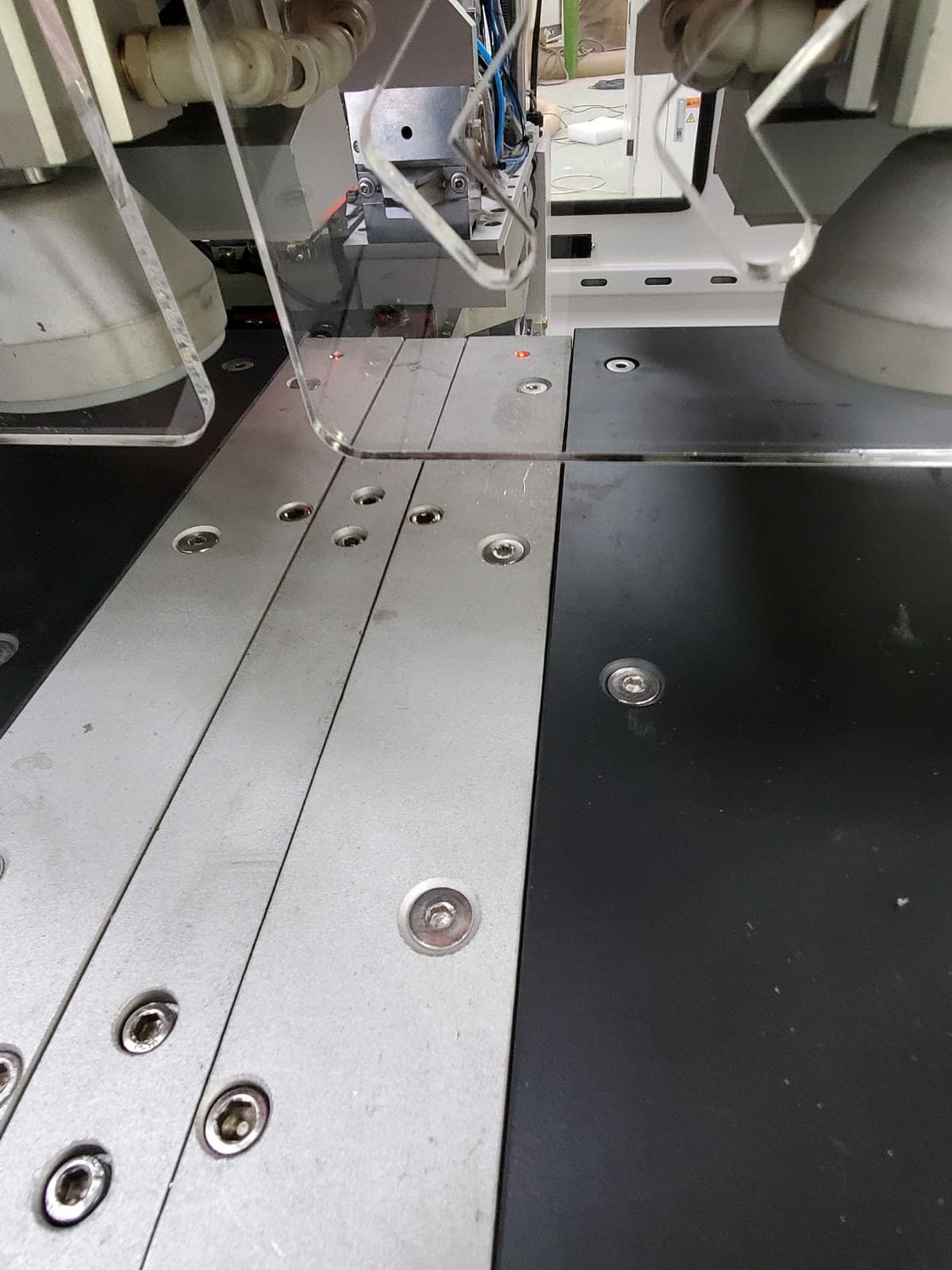

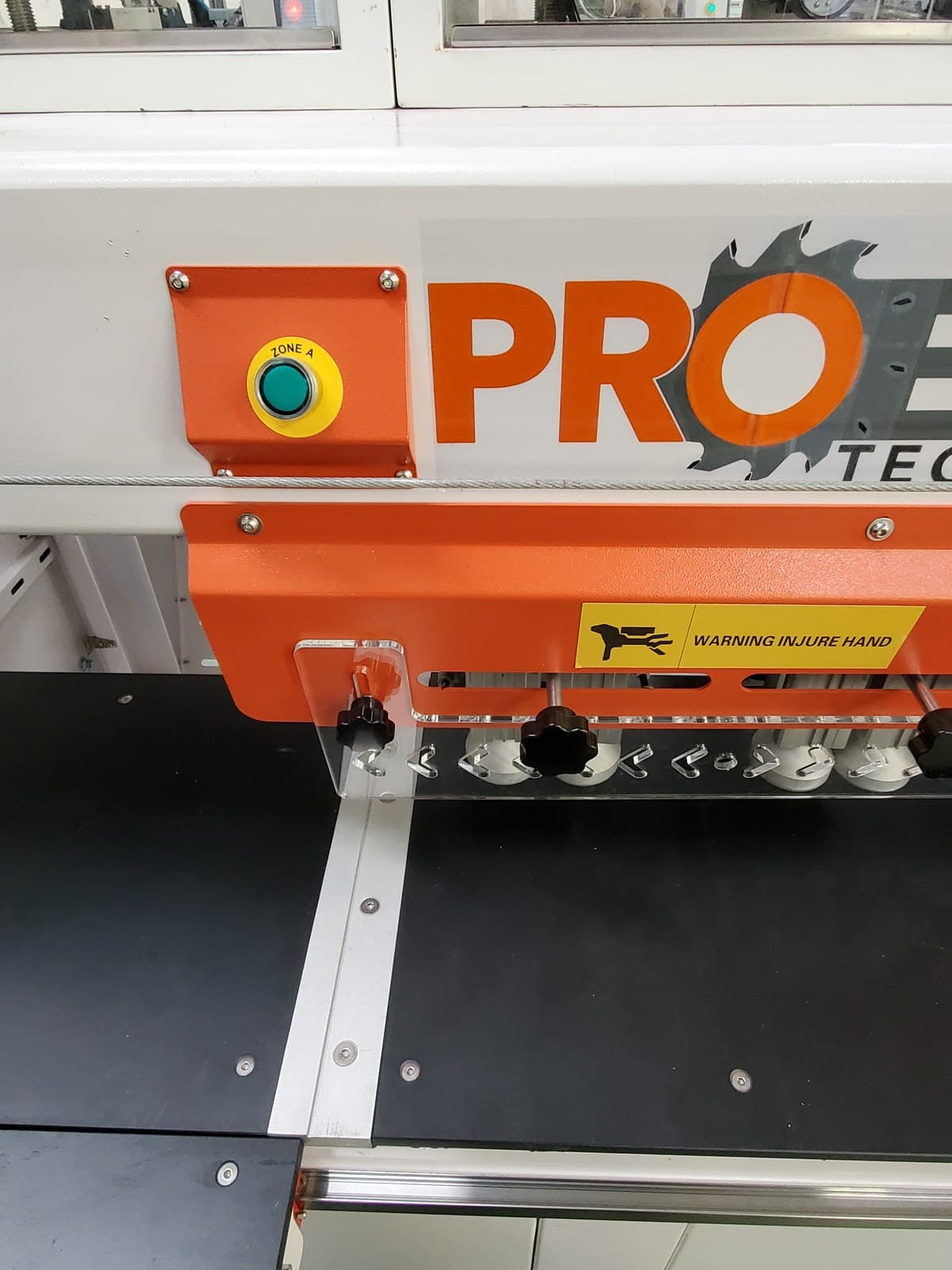

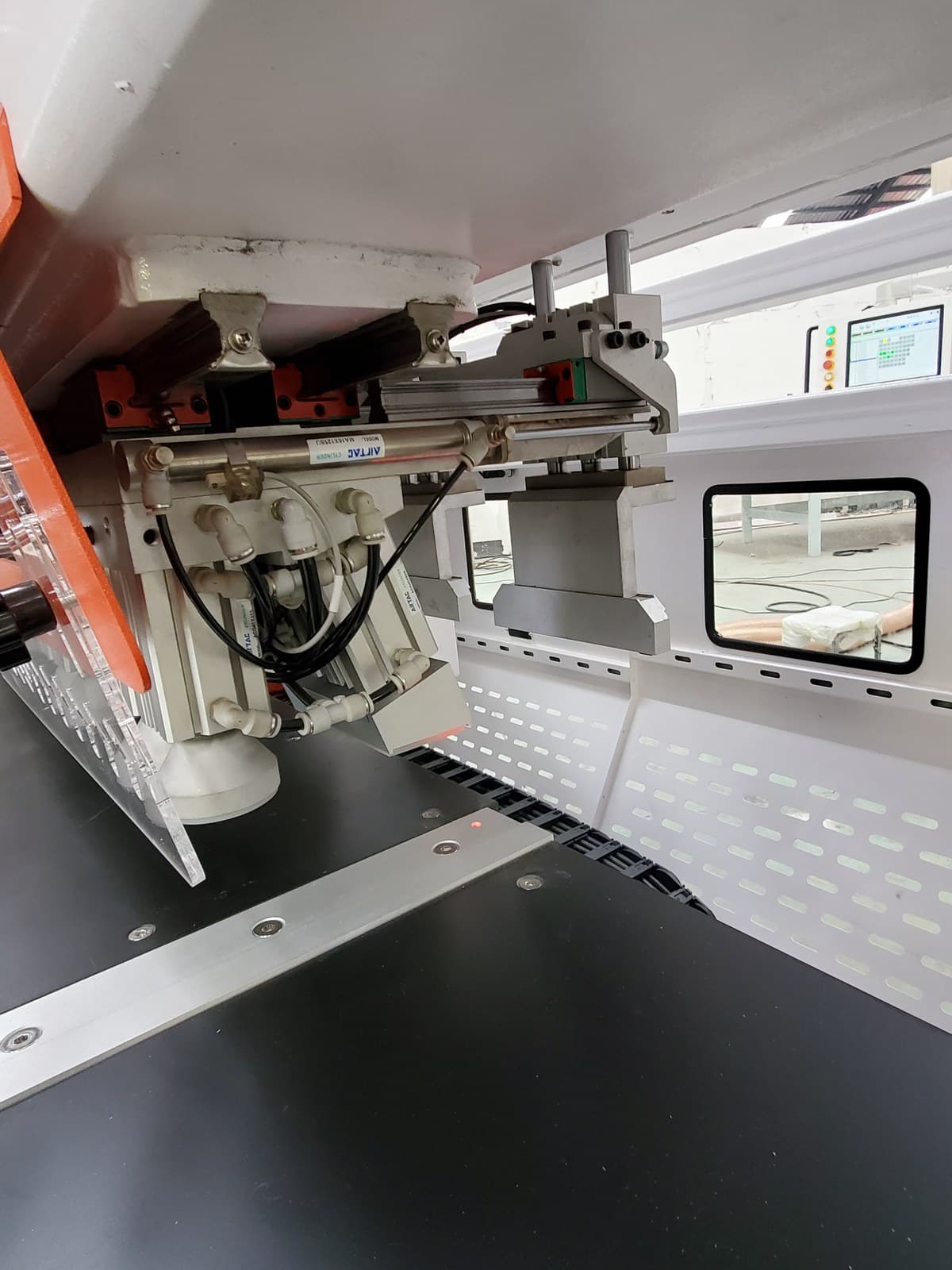

  • The OVVO machining center has a total of 8 2-position fence stops (2 in each zone)

  • There are a total of 32 hold-down clamps

  • All clamps and fences travel on linear guideways and linear bearings

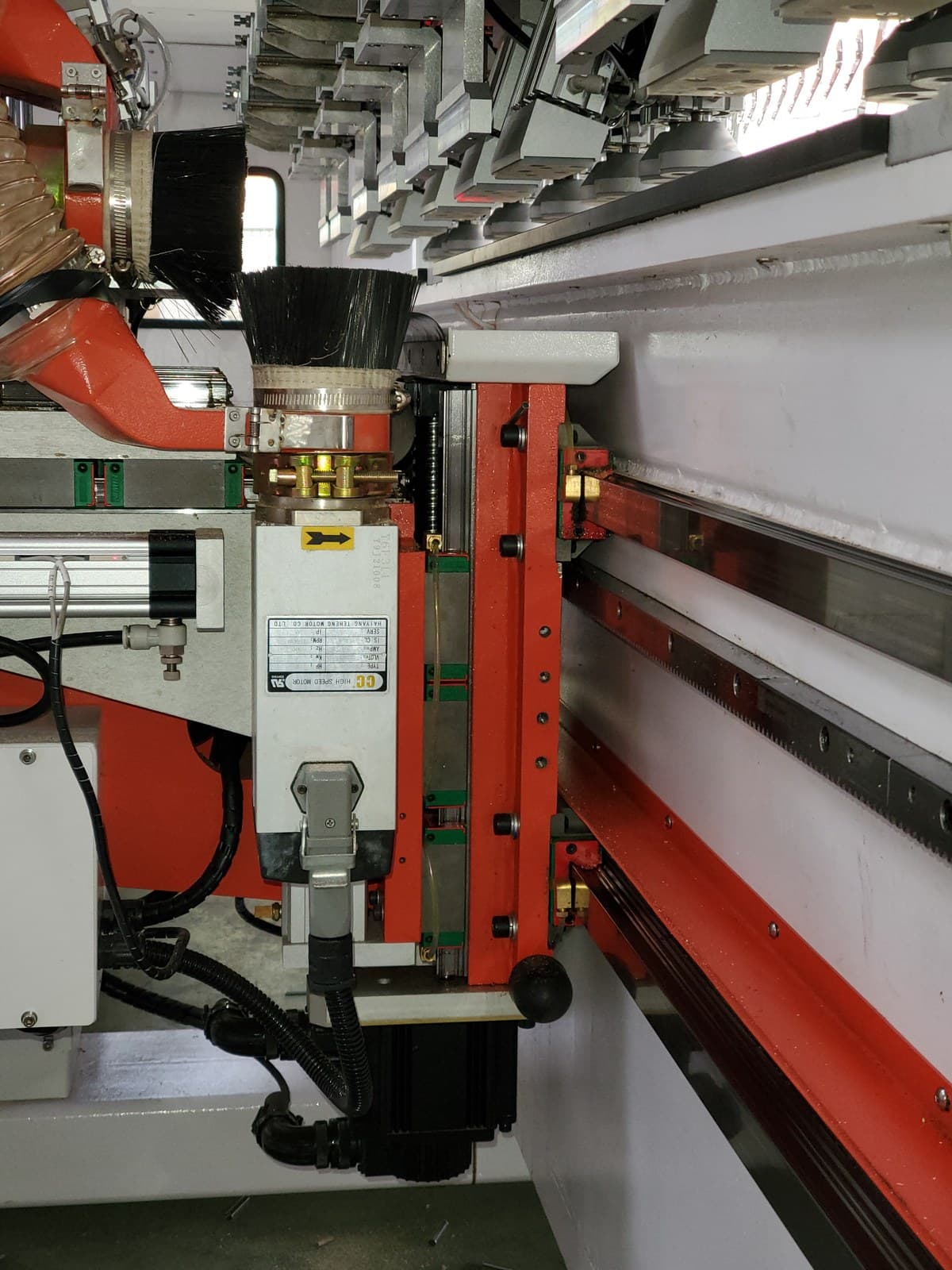

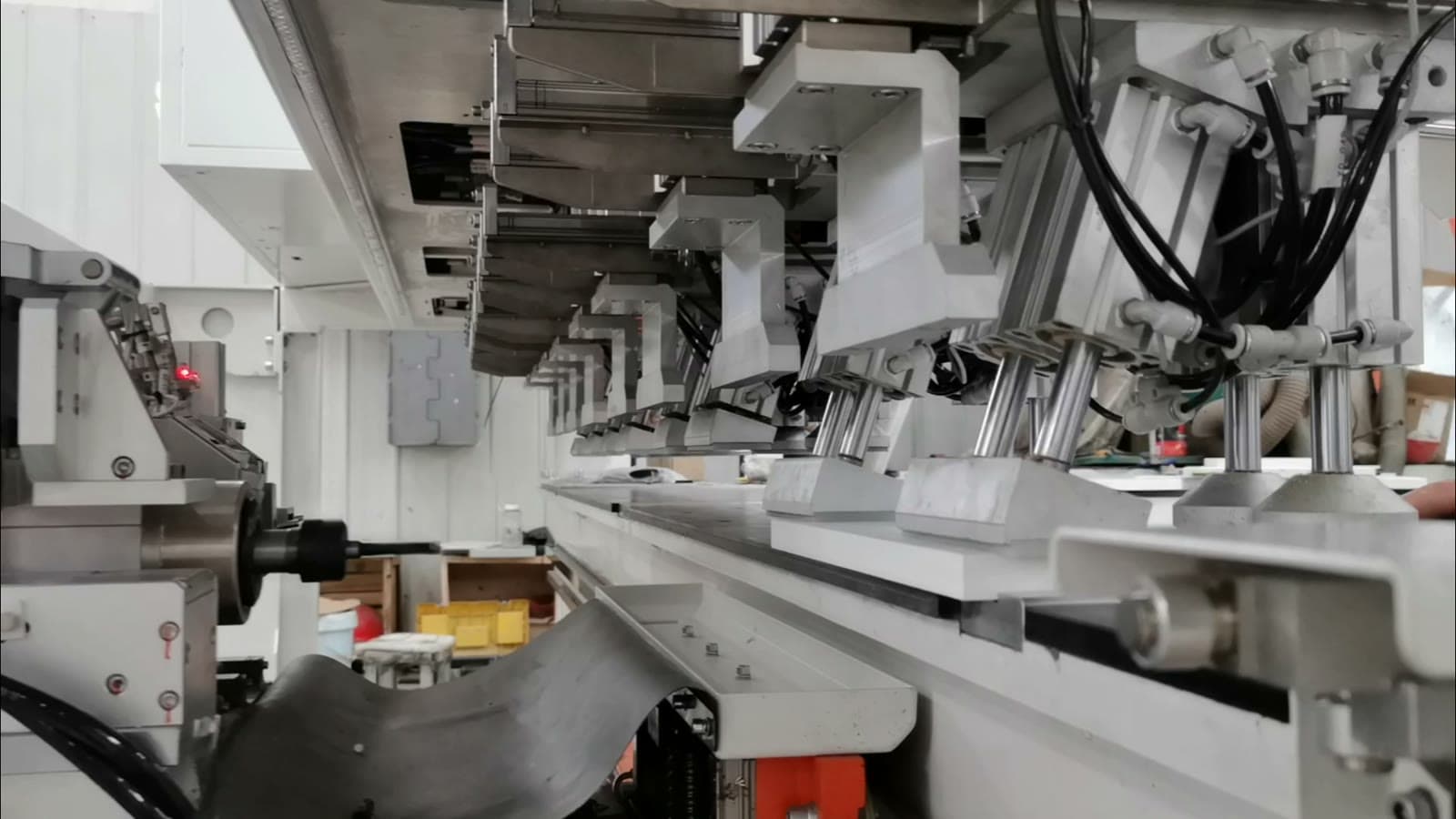

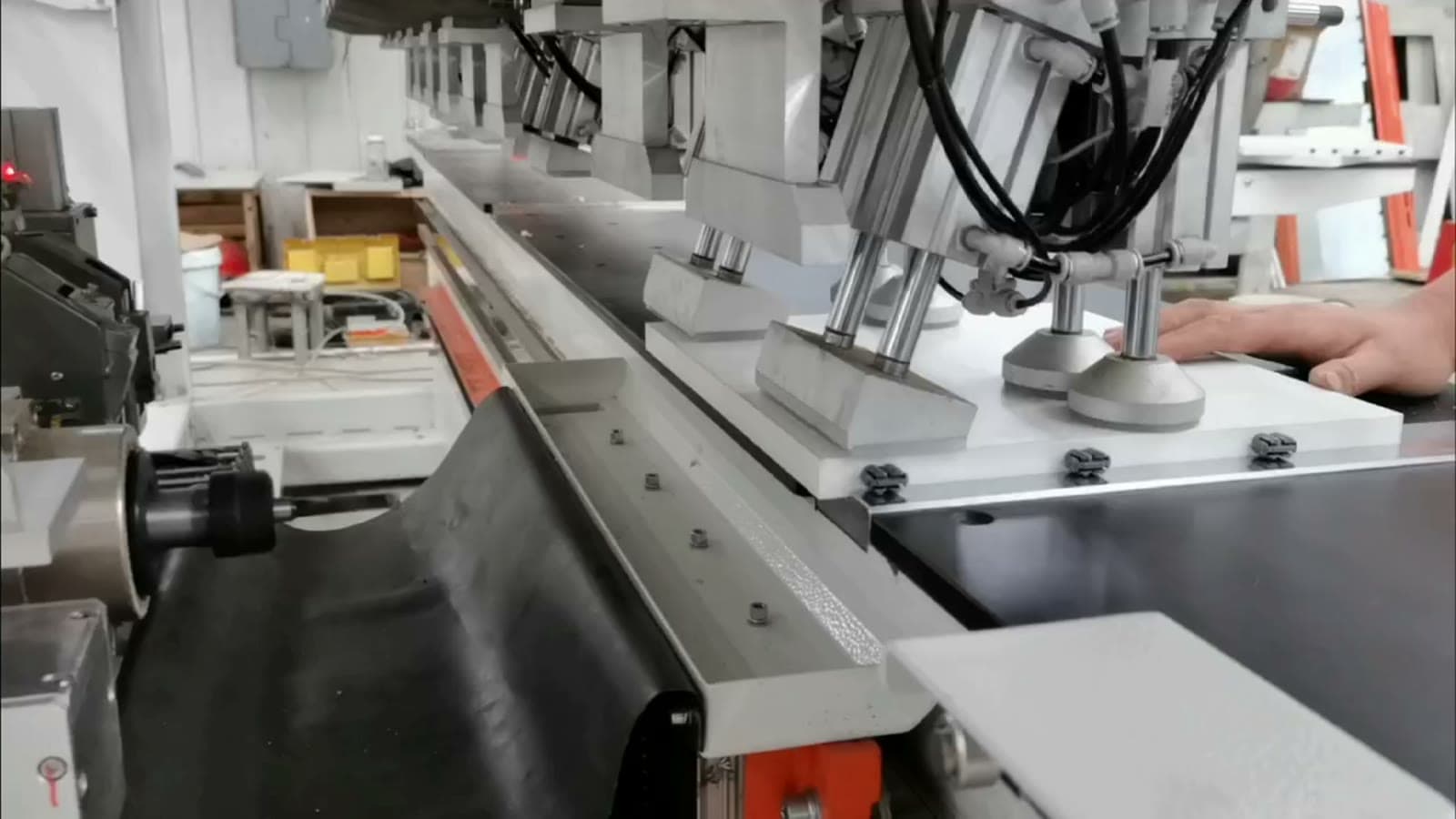

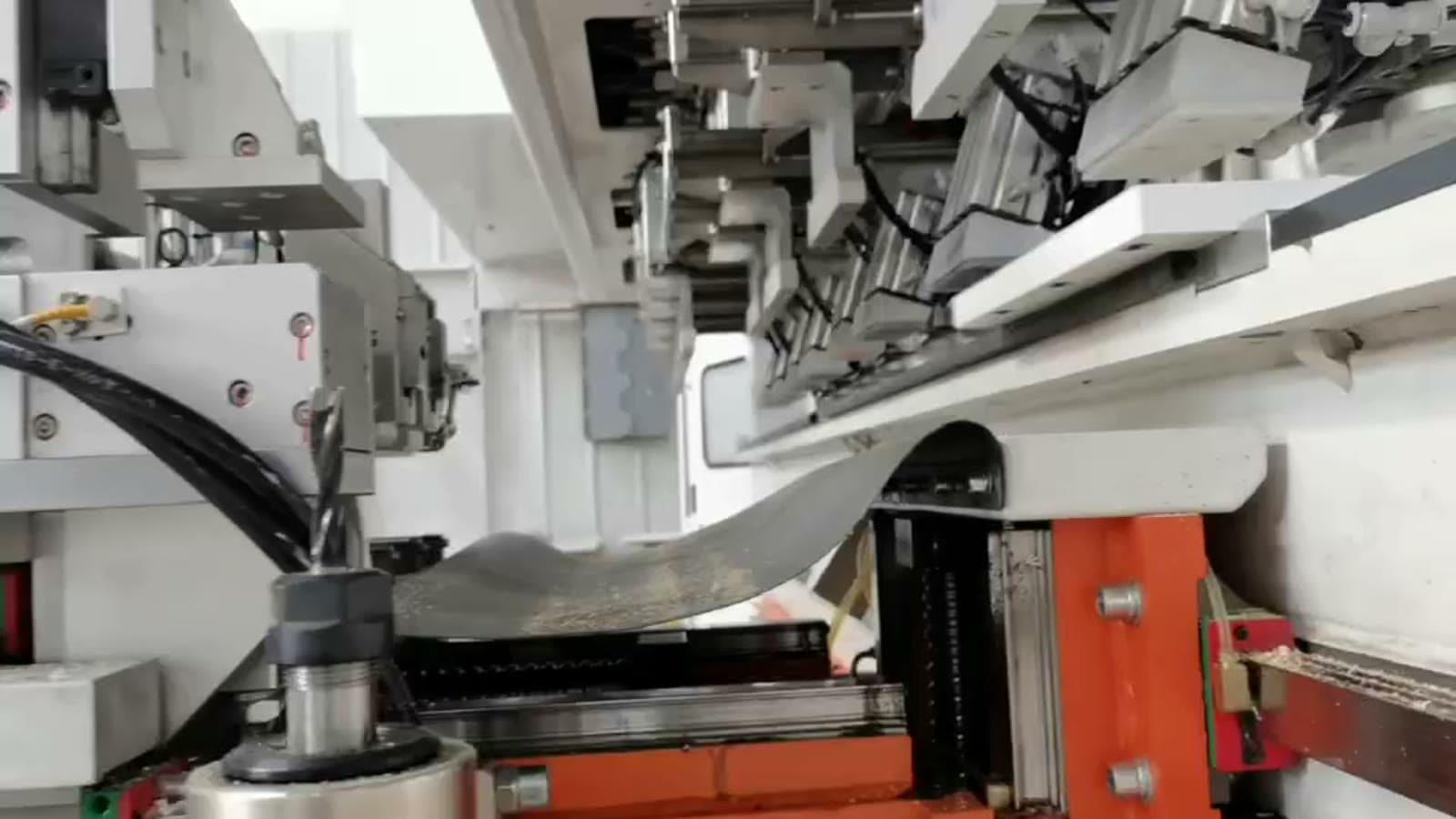

  • The machine has 7 CNC-controlled units including 1 vertical spindle, 2 horizontal spindles, injectors for OVVO's DH1, RD12 or RD9, PD20, and OD30 for 30mm plastic dowels

  • If the machine stops for any reason, it will instruct the operator why it stopped and where there may be an issue, eliminating any guesswork for the operator.

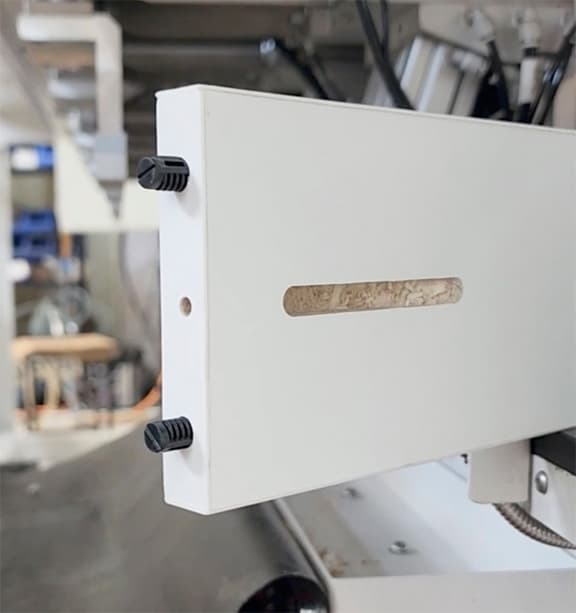

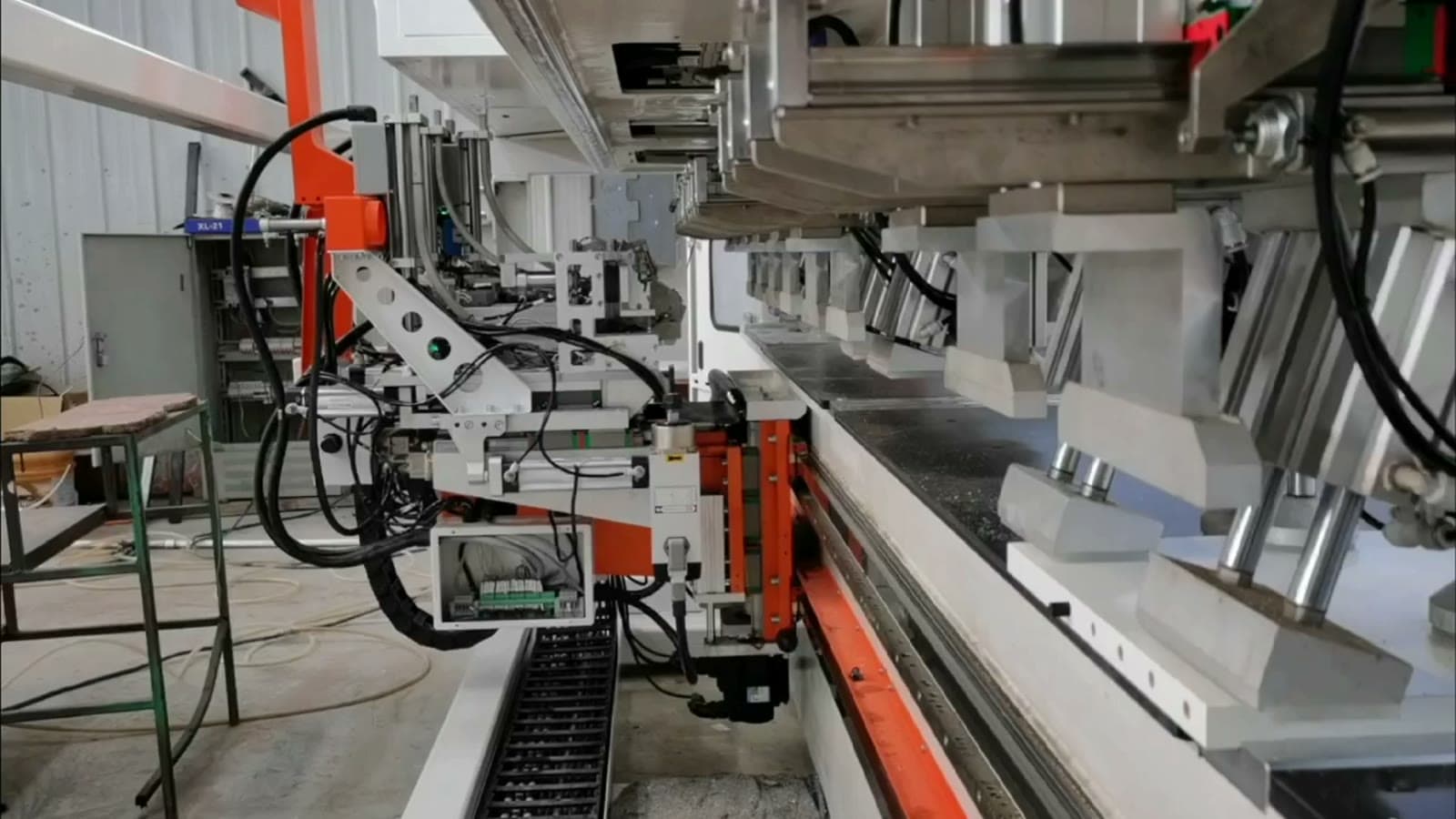

0D30 INSERTED IN PANEL

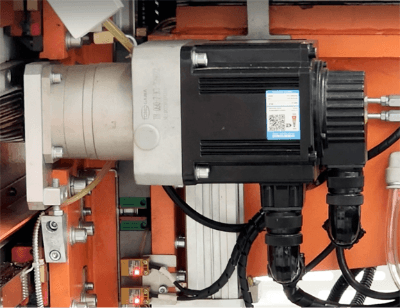

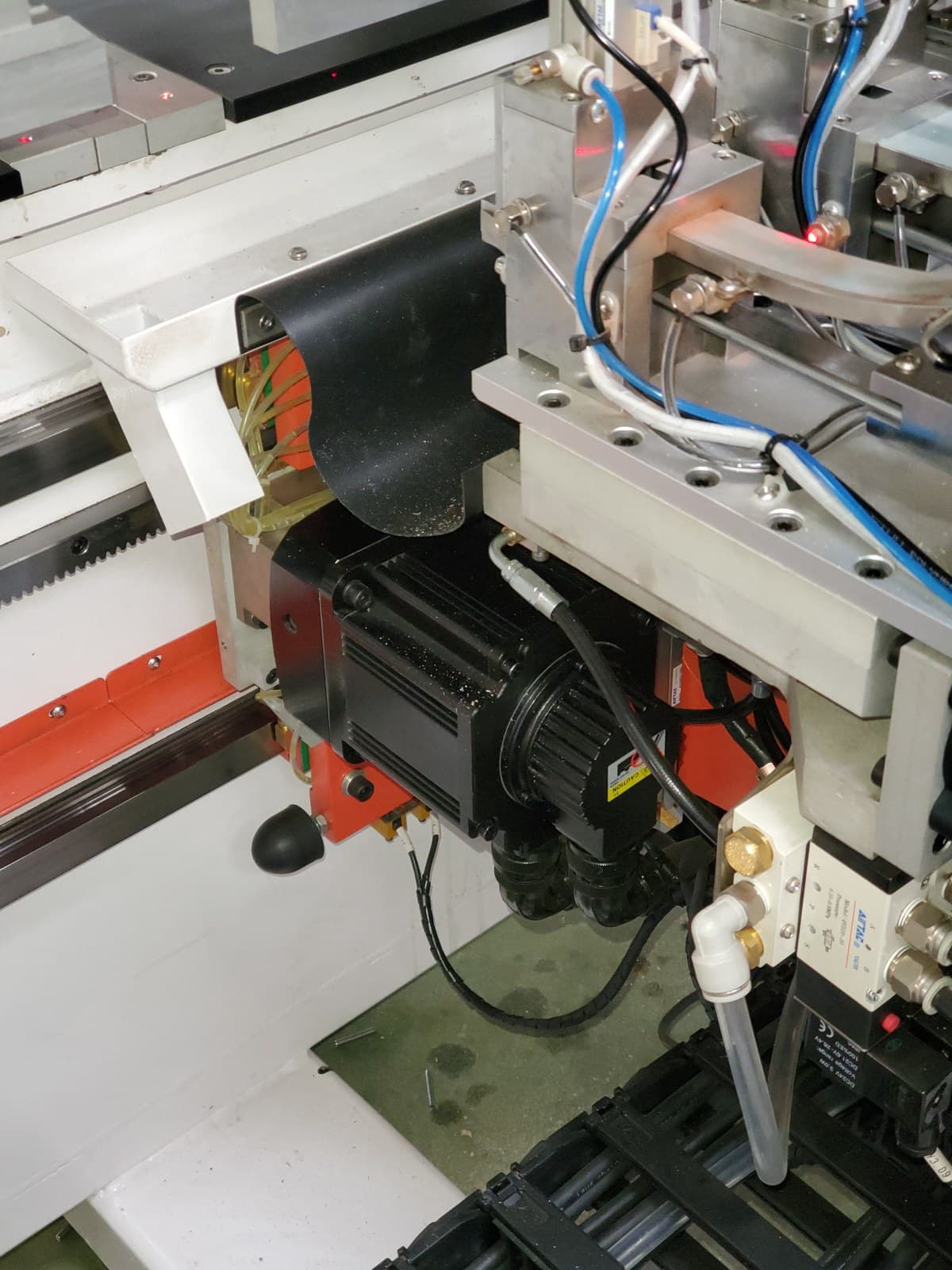

X-AXIS

Tool touch off device.jpg

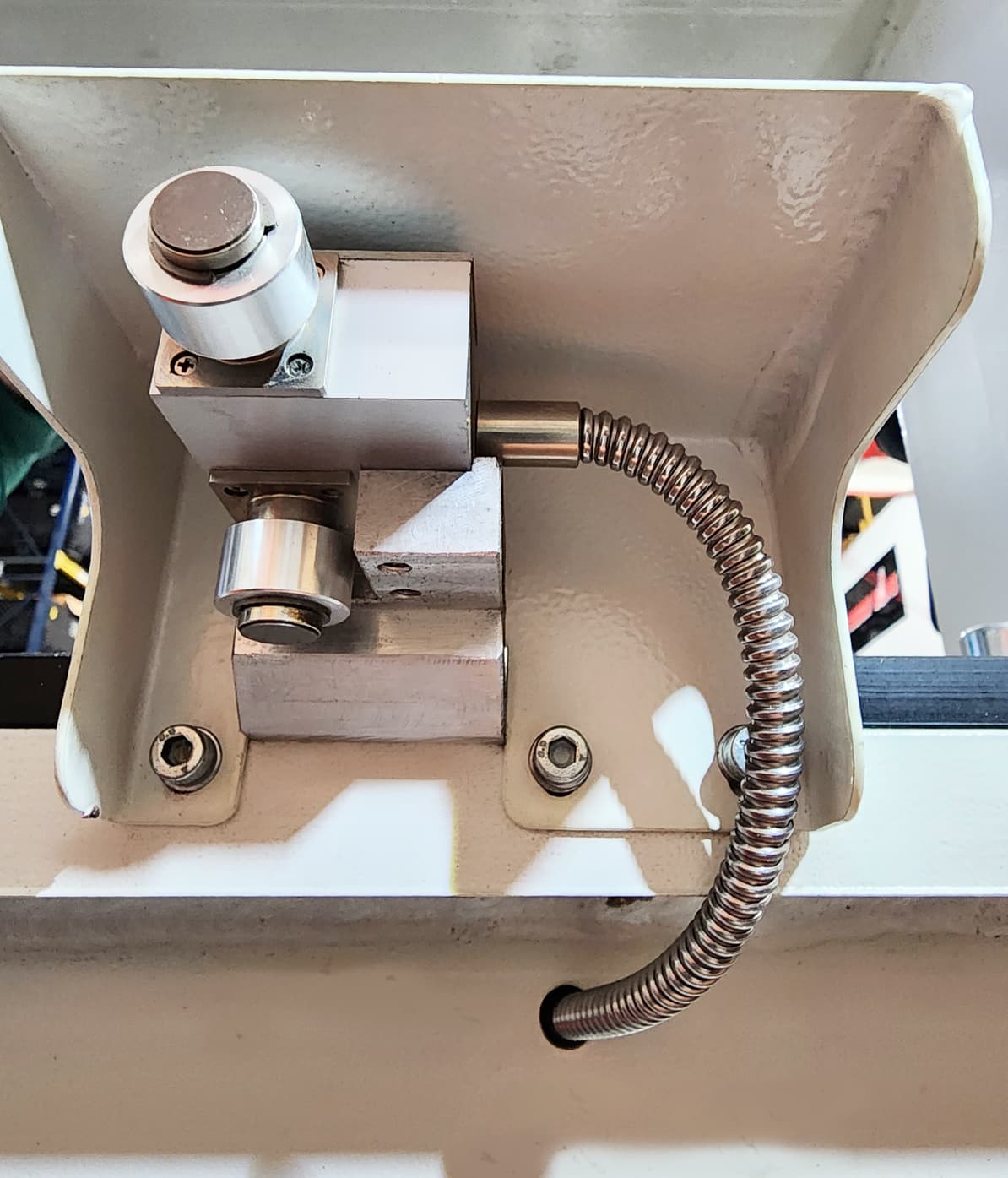

TOOL TOUCH OFF

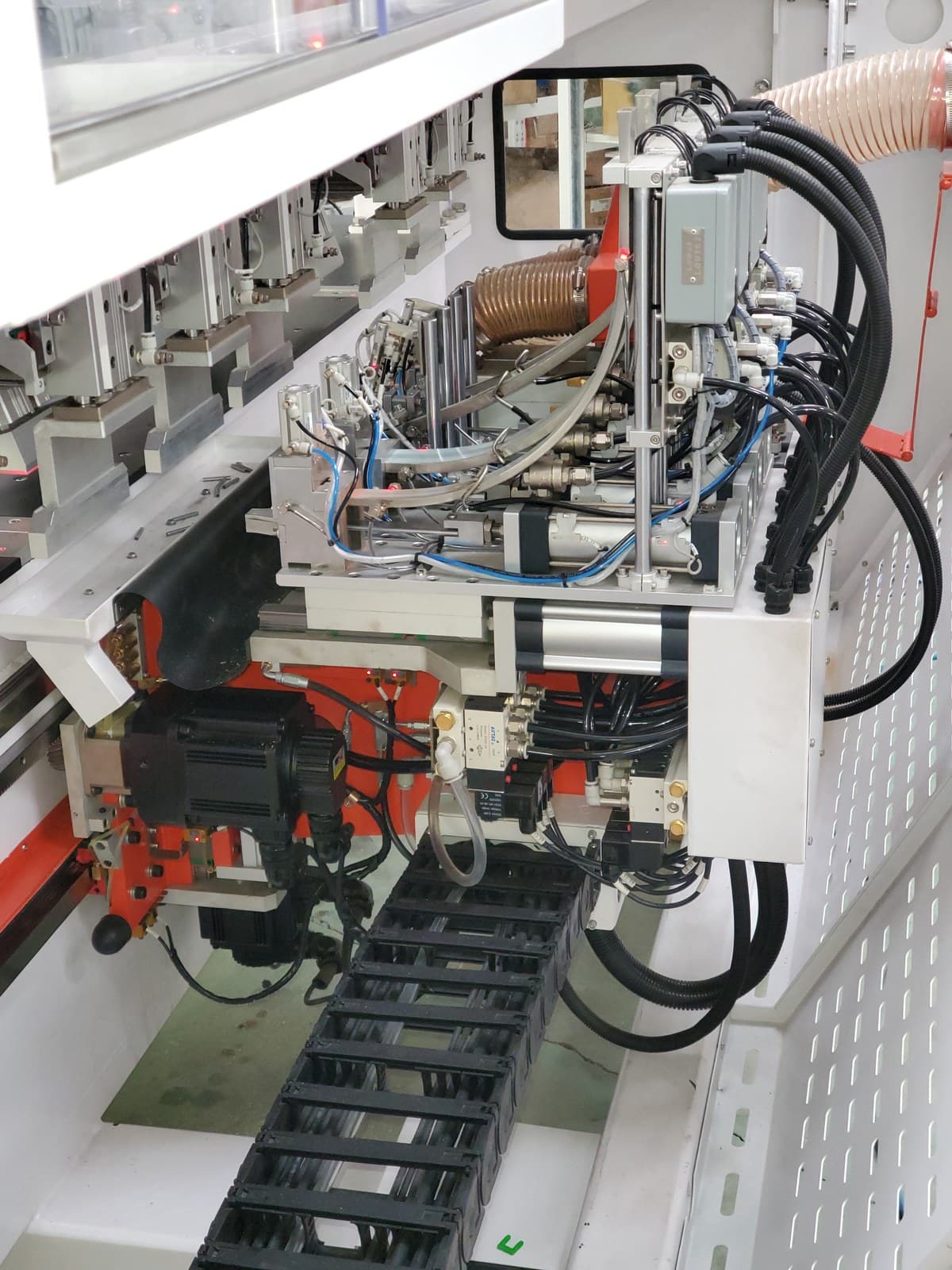

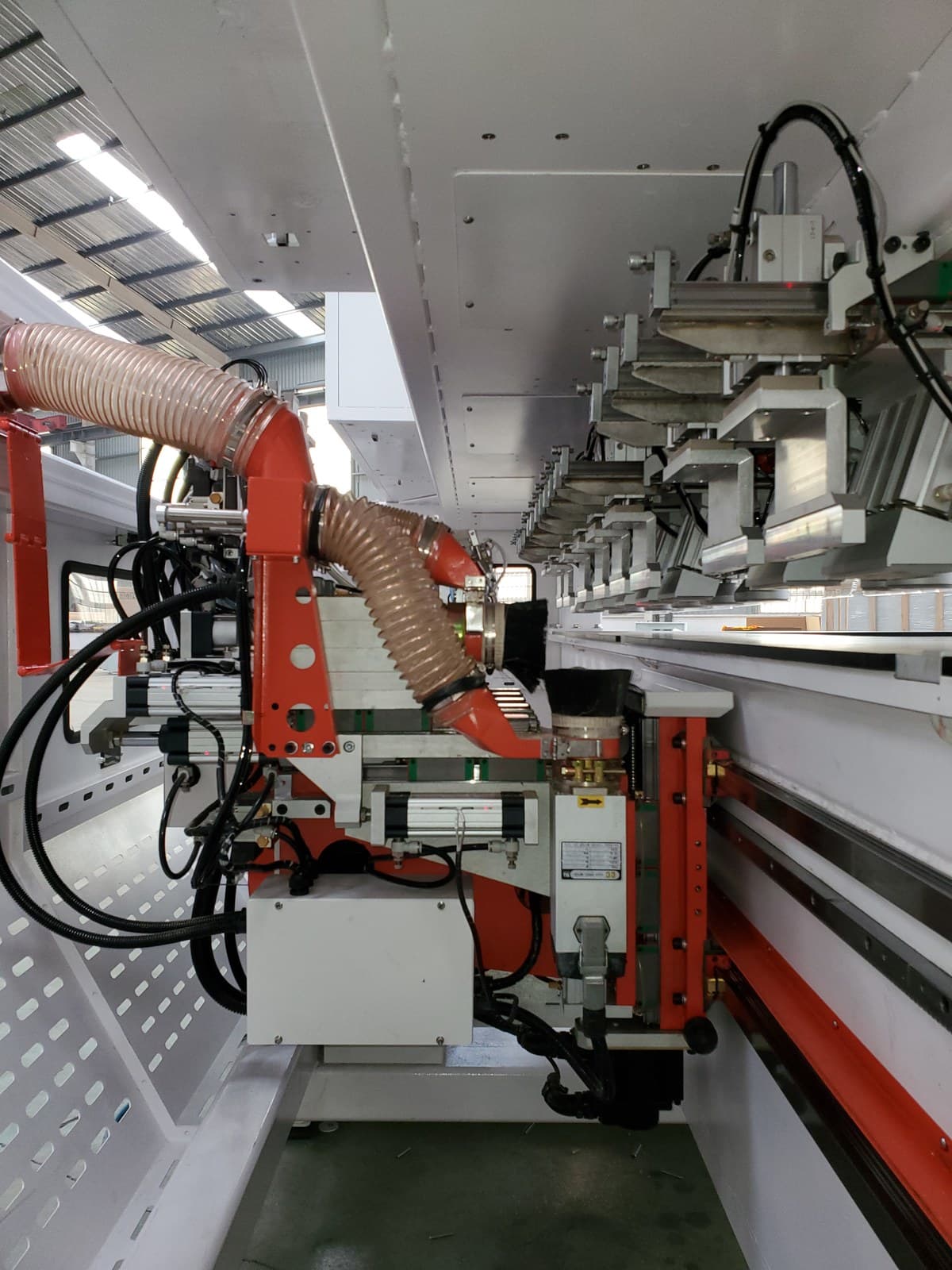

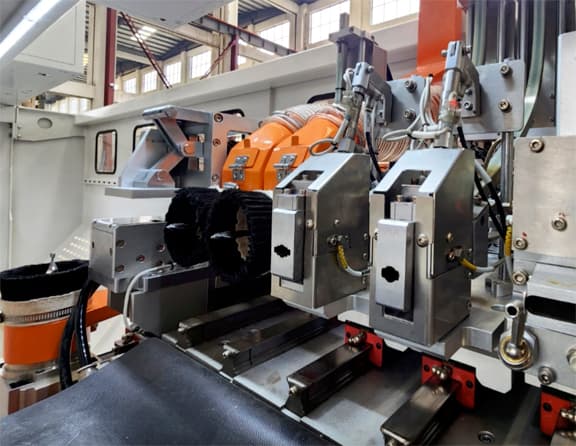

CNC CONTROLLED UNITS
